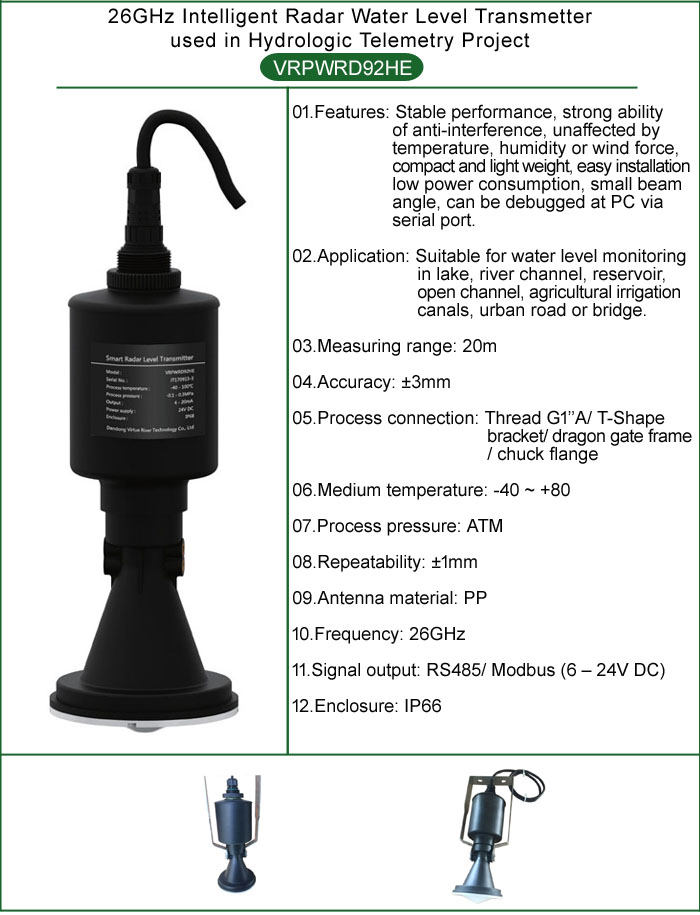

VRPWRD92HE water radar level transmitter

Used in Telemetry Project or IOT Solution

Product Description

Our VRPWRD92HE radar level sensor has the characteristics as following:

Radar water level transmitter adapts a emitting frequency of 26GHz, therefore it has the following features:

Ø Noncontact measuring, no abrasion, no contamination

Ø Easy installation due to small size of antenna

Ø Smaller beam angle, which makes the energy be more concentrated, enhancing the wave reflection ability which can keep signals more powerful to avoid obstacles.

Ø Almost unaffected by corrosion and foams.

Ø Almost unaffected by changes of steam, changes of temperature and pressure in the air.

Ø High SNR, which can make the instrument get better performance.

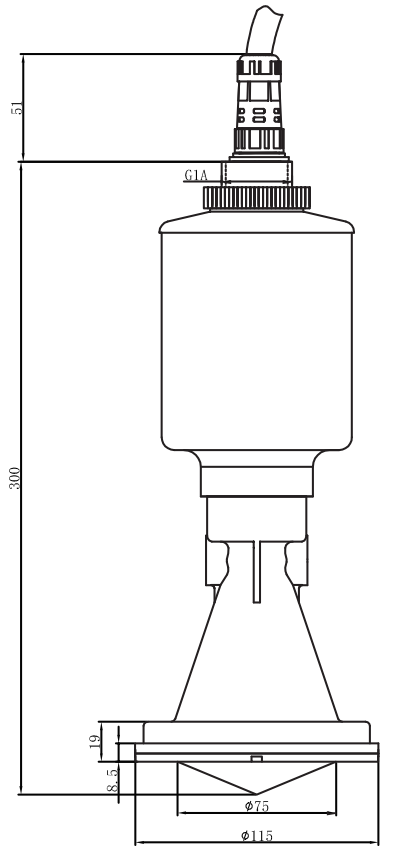

Overall dimension & housing size

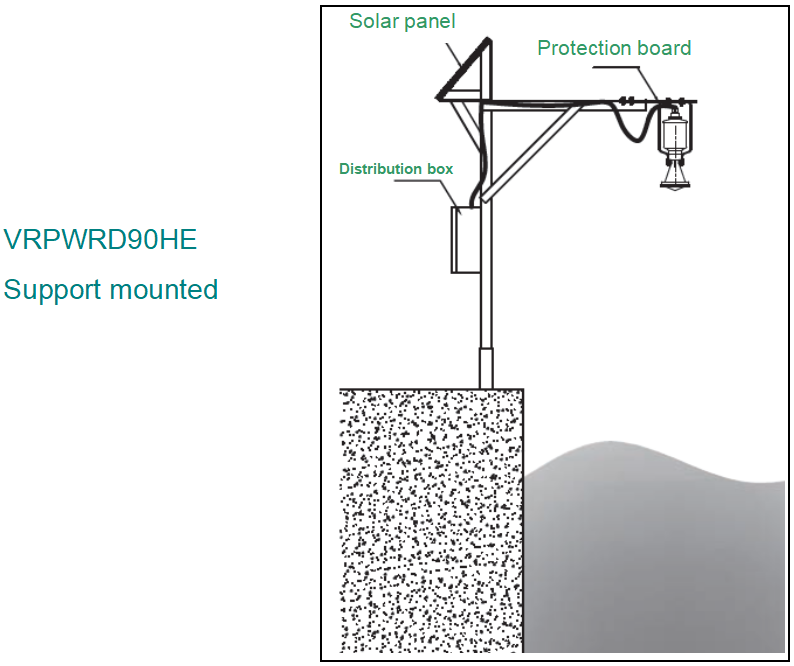

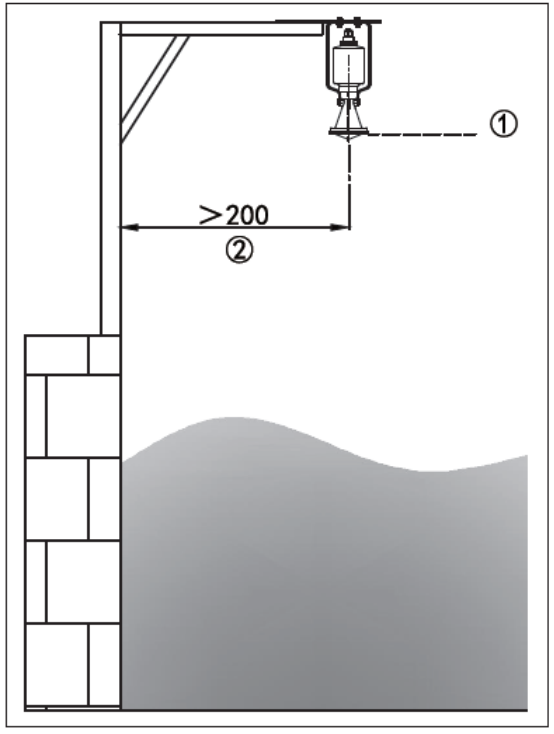

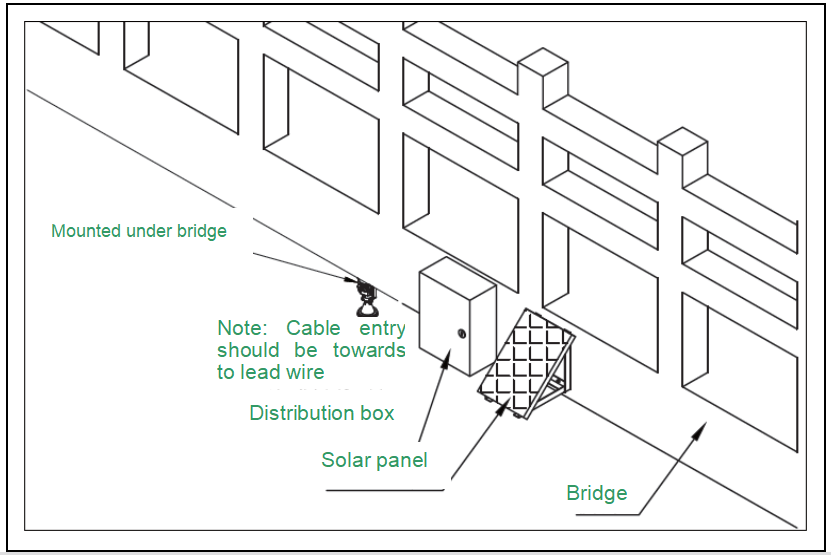

Installation

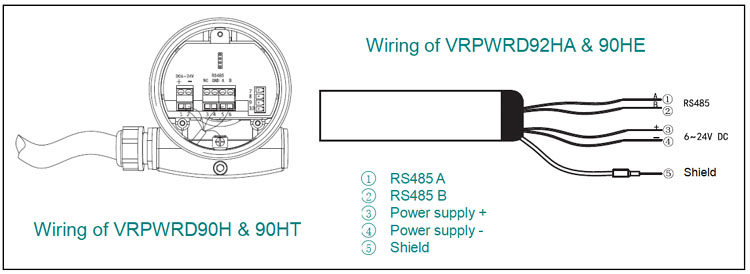

Wiring Diagram

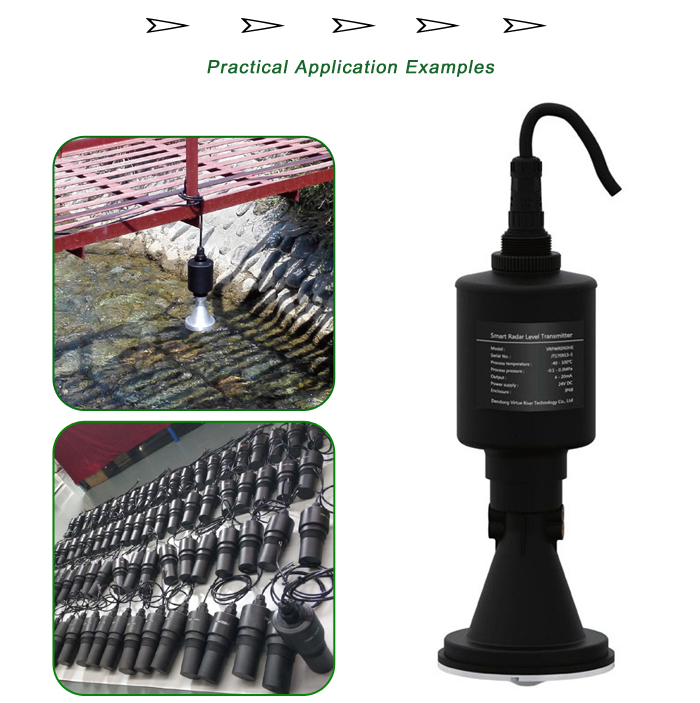

Application Show

FAQ

We list some common questions from our customers which may also solve some doubts of yours. If not, please feel free to contact us to get related information.

1. About Price:

The price is based on the functions on request, and also it is negotiable.

It can be changed according to the quantity in one PO.

2. About sample:

Sample is available with special discount.

3. About warranty:

We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. The warranty period is 18 months from date of delivery or 12 months upon arrival.

4. About technical service:

We provide positively technical support for necessary documents or drawings in need, and also prompt response for any problem at the working site. We also offer technical assistance in efficient ways.

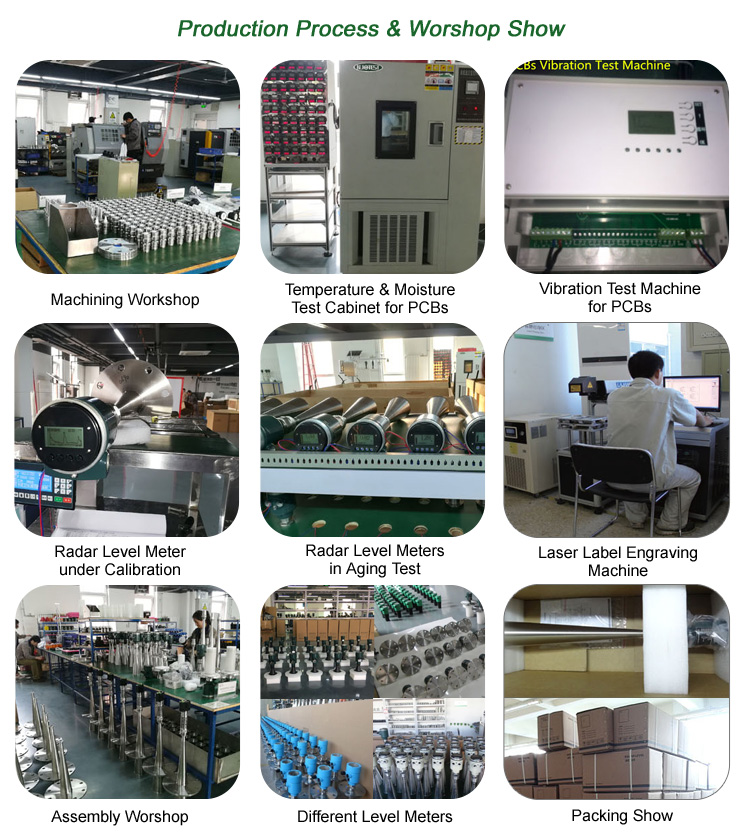

Company Information

Here we provide some reference information of our company to show our scale and power. What we always insist on is "Share win-win with virtue".
