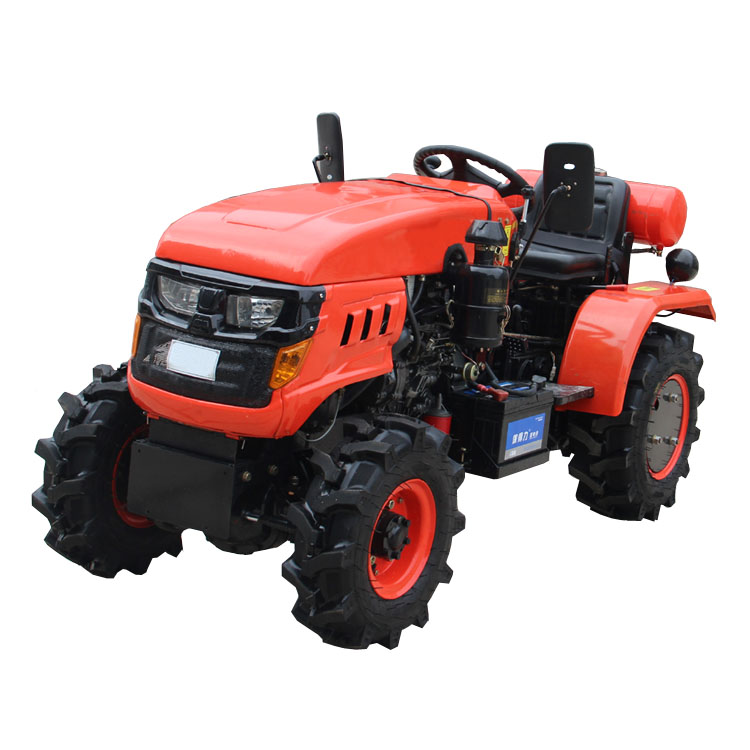

Mini Tractor Used for Garden/Nuresy with Great Narrow Body
We specially develop this type of machine for narrow space garden, nuresy and facility agriculture. It is a multifuction management machine with patented certificate. Great narrow wheel tread is 62cm while max width is 78cm. Four-driving tractor, hydraulic steer, small and flexile. The NARROWEST TRACTOR IN CHINA.
Product Description
Our Mini Tractor CFX-304 has the characteristic as following:
1. Match good qualified National engine with strong power and reliable performance;
2. Great short wheel base for flexibility in turn;
3. Great narrow wheel tread and machine body;
Patented product to ensure unique technology;
Model No. | CFX-304 | CFX-404 | CFX-504 | |
Machine | Driving Form | 4×4 Four-wheel Drive | ||

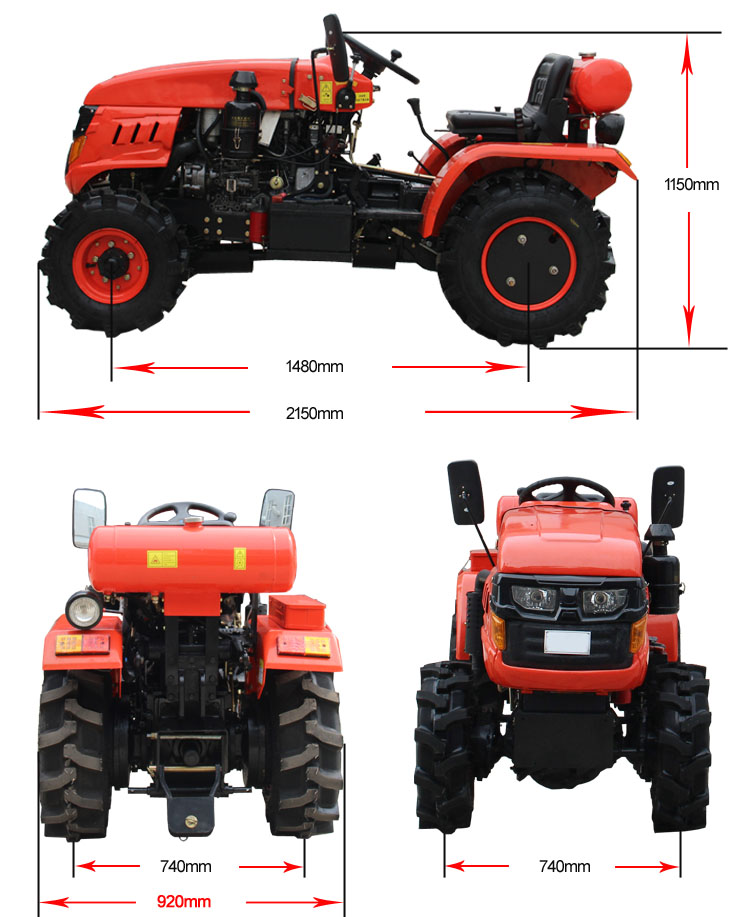

Outline Size(mm) L×W×H | 2150X780X1160 (Option: rear wheel tire 6.00-14, front wheel tire 5.00-12) 2150X920X1150 (Option: rear wheel tire 8.00-12.5, front wheel tire 6.00-10) | |||
Wheel Base(mm) | 1480 | 1580 | ||
Wheel Tread(mm) | Front 620/rear 620 (Option: rear wheel tire 6.00-14, front wheel tire 5.00-12) Front 740/rear 740 (Option: rear wheel tire 8.00-12.5, front wheel tire 6.00-10) | |||
Mini Ground Clearance (mm) | 140 (Option: rear wheel tire 6.00-14, front wheel tire 5.00-12) 130 (Option: rear wheel tire 8.00-12.5, front wheel tire 6.00-10) | |||
Tire | Front 5.00-12/rear 6.00-14(option: front 6.00-10/8.00-12.5) | |||
Number of gear | 3X2+1 | |||
Theoretical velocity of all gears (km/h) | Forwarder gear I:1.51;gear II3.57;gear III:4.81;gear IV:5.68; gear V:11.2;gear VI:17.27;reverse gear:3.68 | |||
PTO power (kW) | 18 | Option | 29.68 | |
Max tractive force (kN) | 5.8 | Option | 7.0 | |
Engine | Model No. | 3TE30 | Option | 4TE50K |
Engine power (kW) | 22.1 | Option | 36.8 | |
RPM (r/min) | 2350 | Option | 2400 | |
Emmision | National 3 | |||
Steer | Steering Form | Full hydraulic power steering | ||
Suspension | Structure Form | Rear three-point suspension,class 1N | ||
Max lift force (kN) | 4.97 | Option | 9 | |
PTO | Rotating speed (r/min) | 540(option 720) | ||
Power output shaft size | 35(6key) | |||

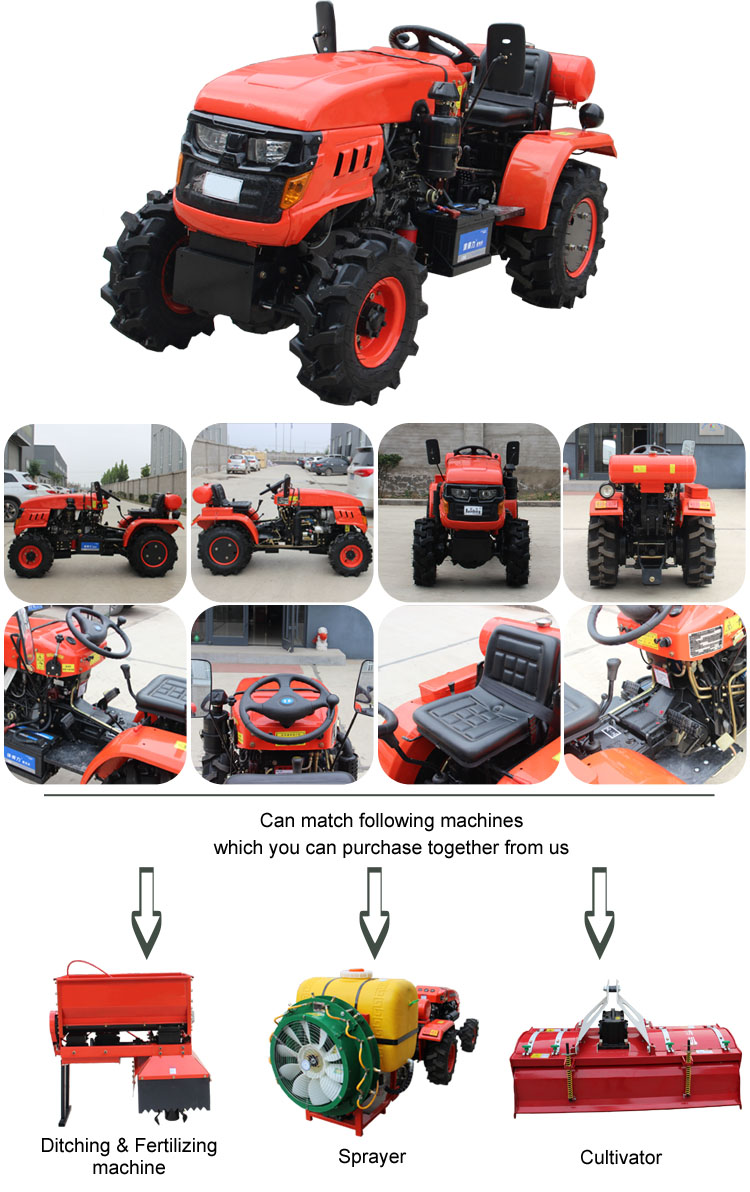

Product Overviews
FAQ
Q: Could you please offer more information about the product, and offer a quotation for reference?
A: Yes, sure. Please let us know your detailed request about the machine and we will recommend suitable ones to you for chosen; or we provide some similar items via email for your reference.
Q: The price is a little higher than my target, could you please offer some discount?
A: Yes, we will do our best to meet your budget by calculating the benefit, or changing the components, or by other payment. We can discuss with each other to find out a win-win solution.
Q: May I purchase one sample, or place mix order?
A: Sure, one is acceptable, and you can mix different models as you like.

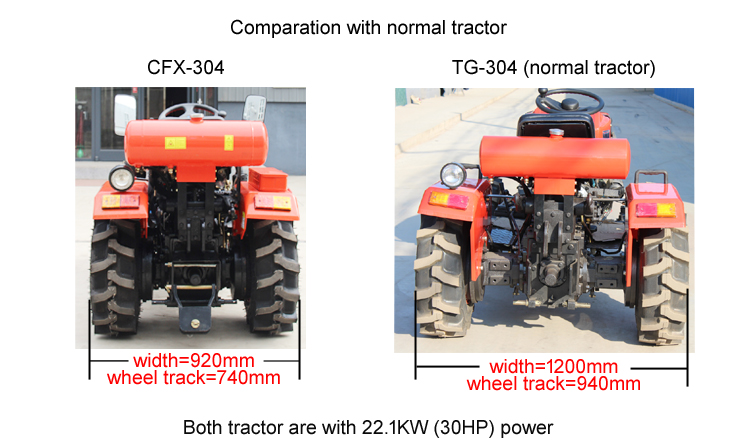

Q: Since my garden is a little small, is your machine suitable for narrow lines?
A: Sure, our tractor is specially designed for narrow space with 62cm wheel tread. The max width is 78cm.
Customer Visit
