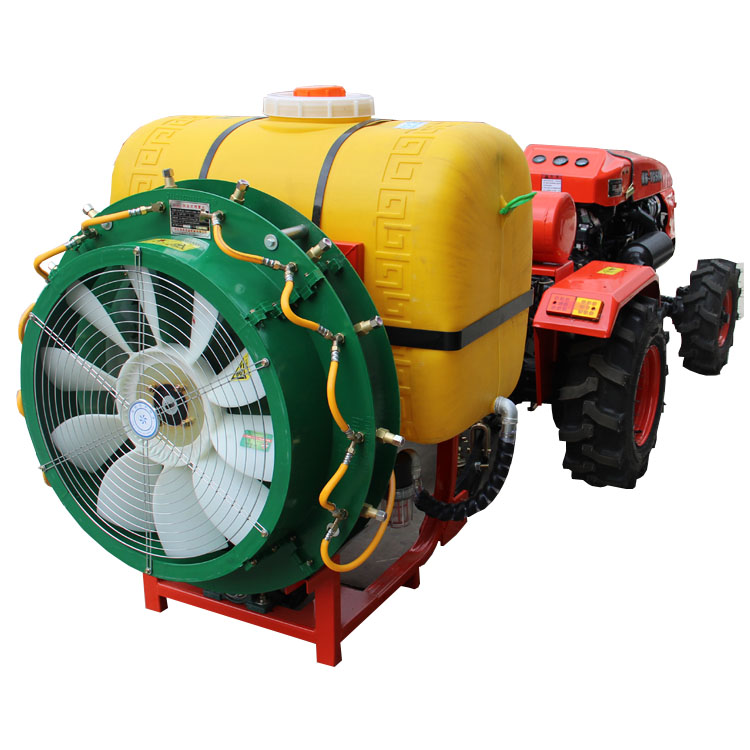

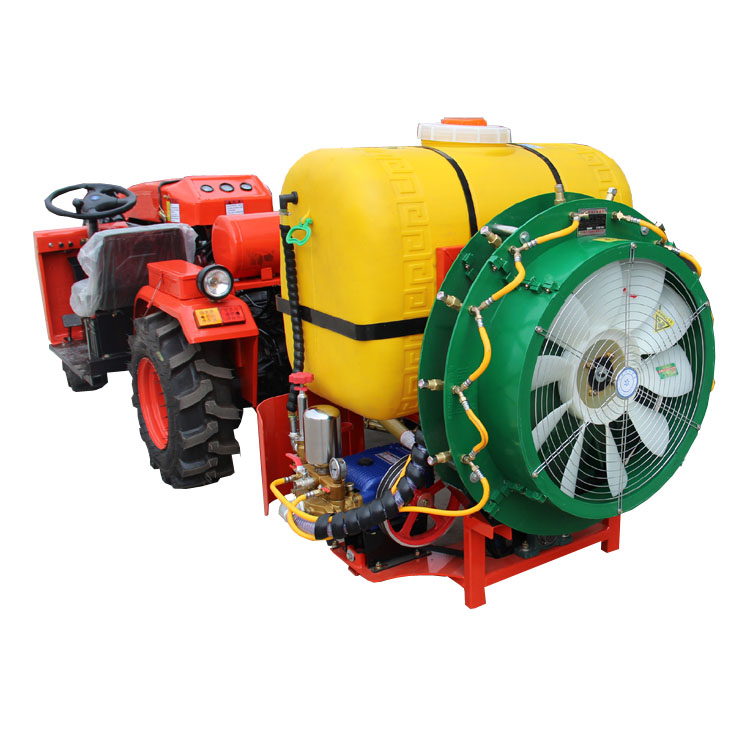

300L Tractor Mounted PTO Drive Sprayer
300L wind blowing type sprayer matches the tractor via three-point suspension device. Short machine body is easily operated in garden. Forced wind atomizes liquid for uniform spray whose working efficiency is 20times than labour work. Good atomization effect and low default ratio, especially used for middle/small-size garden.
Product Description
Our garden sprayer has the characteristics as following:
Model No. | 3WP-500 |
Type | Suspension, wind blow |
Capacity (L) | 430 |
Matched power (HP) | ≥30 |
Spray radius (m) | 4 |
Working pressure (Mpa) | 2-4 |
Input rpm (r/min) | 720 |
Outline dimension (mm) | 1080X1200X1250 |
Weight (kg) | 145 |
Spray head (pcs) | 10 |
Plunger pump flow (L/min) | 60-70 |
Plunger diameter (mm) | 30 |
Material of medicine box | Plastic |
Diameter of fan impeller (mm) | 625 |
Rpm of fan impeller (r/min) | 1872 |
Material of fan impeller | Nylon blade steel hub |
Working efficency (Mu/H) | 9-15 |

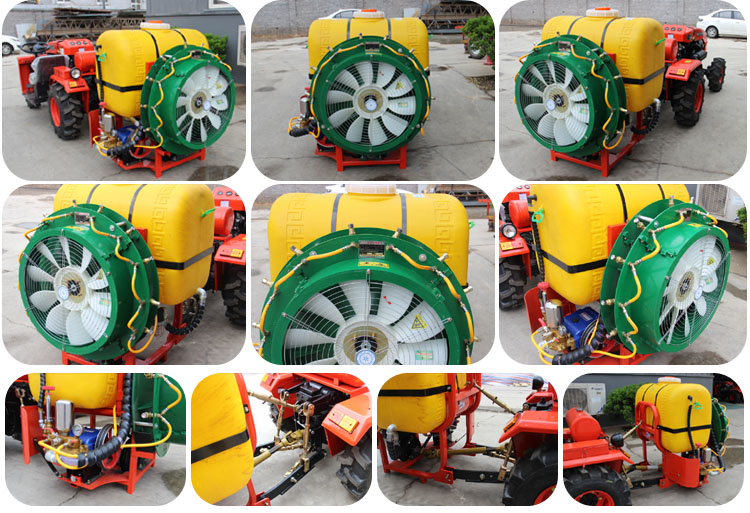

Product Overviews
FAQ
Q: Could you please offer more information about the product, and offer a quotation for reference?
A: Yes, sure. Please let us know your detailed request about the machine and we will recommend suitable ones to you for chosen; or we provide some similar items via email for your reference.
Q: The price is a little higher than my target, could you please offer some discount?
A: Yes, we will do our best to meet your budget by calculating the benefit, or changing the components, or by other payment. We can discuss with each other to find out a win-win solution.
Q: May I purchase one sample, or place mix order?
A: Sure, one is acceptable, and you can mix different models as you like.
Customer Visit
