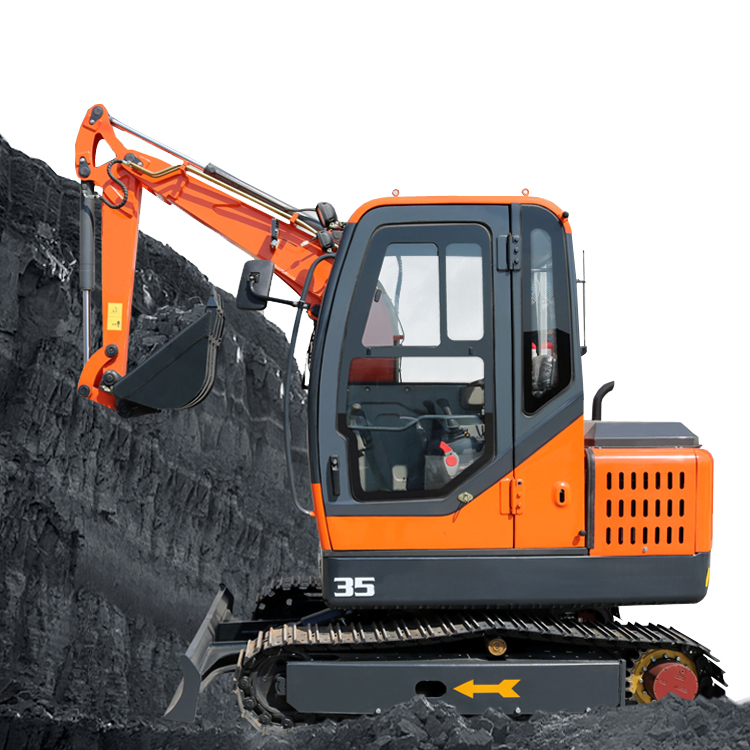

Hydraulic Crawler Excavator With 0.23cbm Bucket and Yammar Engine
Product Description
Our digging machine has the characteristics as following:
Model: SL35
Machine weight: 3500kg, Bucket capacity: 0.23cbm, Max.digging deapth:3000mm
Optional accessories: breaking hammer, loosener, steel caterpillar, full-closed cab, cool-warm air conditioner, Yammar engine
Advantages:
Fational appearance, high configration, superior performance, low fuel consumption, wide operating range.
Multipurpose:
digging the hole for tree planting of fruit-land nurseries concrete pavementcrushing, losing soil of vegetable greenhouse, campus greening of municipal departments, sand-gravel material mixing, construction work in the narrow place.
It can reduce mantenance and operating costs liberate the workforce. Improve the mechanization, low investment, high return.
Engine type | Four tank water cooling/Yammar 3TNV88 |
Engine mode | Natural Aspirated |
Power | 36.8kW/2500rpm 27kW/2200rpm |
Torque | 44.4nm/2200rpm |
Bucket capacity | 0.23cbm |
Bucket mode | backhoe |
Caterpillar width | 300mm |
Dipper arm length | 1230mm |
Moving arm length | 2350mm |
Integrated machine weight | 3500kg |
Rotating speed | 10rpm |
Tail turning radius | 650-718mm |
Walking speed | 5.55/3.06km/h |
Clambing ability | 26 degree |
Ground pressure | 1.448kg/cm2 |
Caterpillar length | 2175mm |
Chassis width | 1600mm |
Digging height | 4450mm |
Offloading height | 3050mm |
Digging depth | 3000mm |
Digging distance | 4300mm |
Bulldozer-shovel digging depth | 210mm |
Displacement | 1.662L |
Hydraulic oil tank capacity | 43L |
Fuel oil tank capacity | 50L |
Traction force | 12.5KN |
Bucket digging force | 13.6KN |
Dipper arm digging force | 24KN |
Packing dimension | 4600*1650*2500mm |
Product Overviews
FAQ
Q: Could you please offer more information about the product, and offer a quotation for reference?
A: Yes, sure. Please let us know your detailed request about the machine and we will recommend suitable ones to you for chosen; or we provide some similar items via email for your reference.
Q: The price is a little higher than my target, could you please offer some discount?
A: Yes, we will do our best to meet your budget by calculating the benefit, or changing the components, or by other payment. We can discuss with each other to find out a win-win solution.
Q: May I purchase one unit only, or place mix order?
A: Sure, one is acceptable, and you can mix different models as you like.
