Product Overviews
High Quality Air Blast Sprayer
for Orchard/Farmland/Forestry/Urban Afforesting

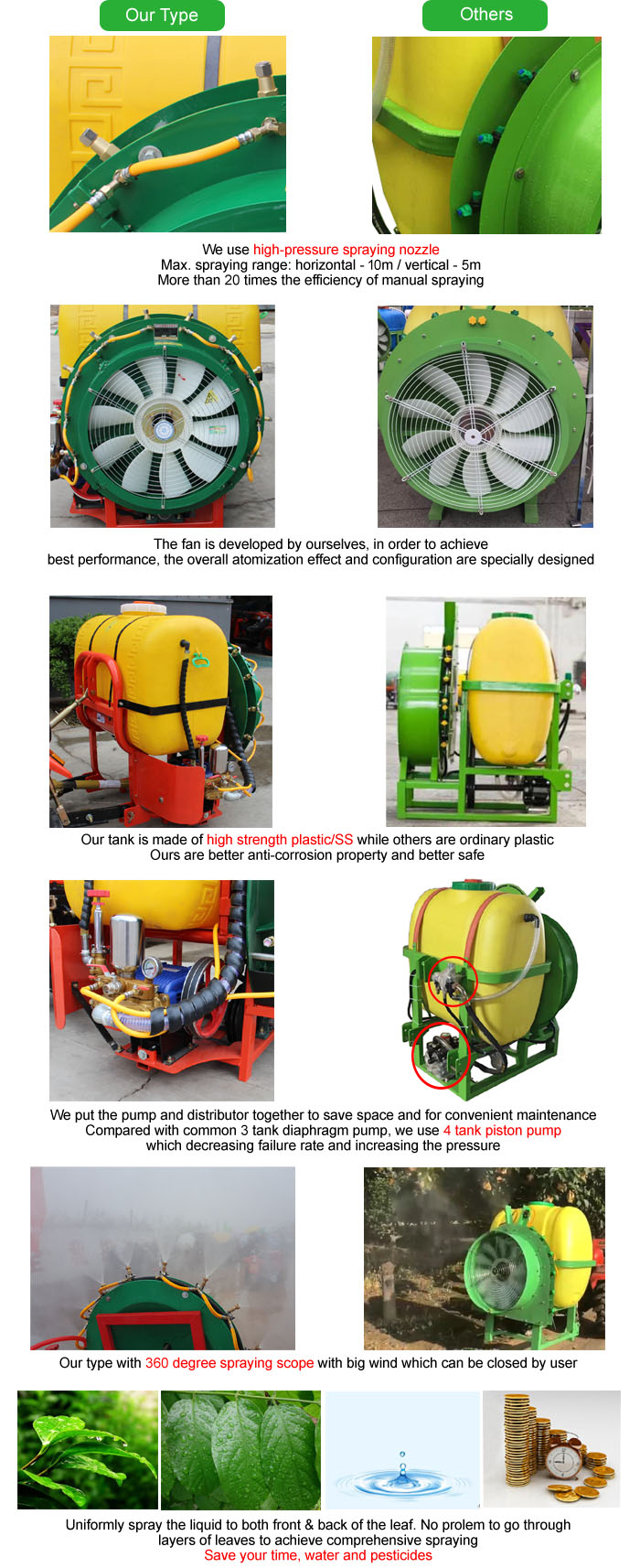

Detail Show
Why we'd better purchase a spray? - Sprayer is more than 20 times the efficiency of manual spraying, and it can greatly reduce the labor intensity. Since the injection parts are at the end and away from the driver, the risk of poisoning by the operator can be effectively reduced.
Why choose our sprayer? - Good quality: high strength plastic/SS material + more professional + save your time/water/pesticides.
Product Description

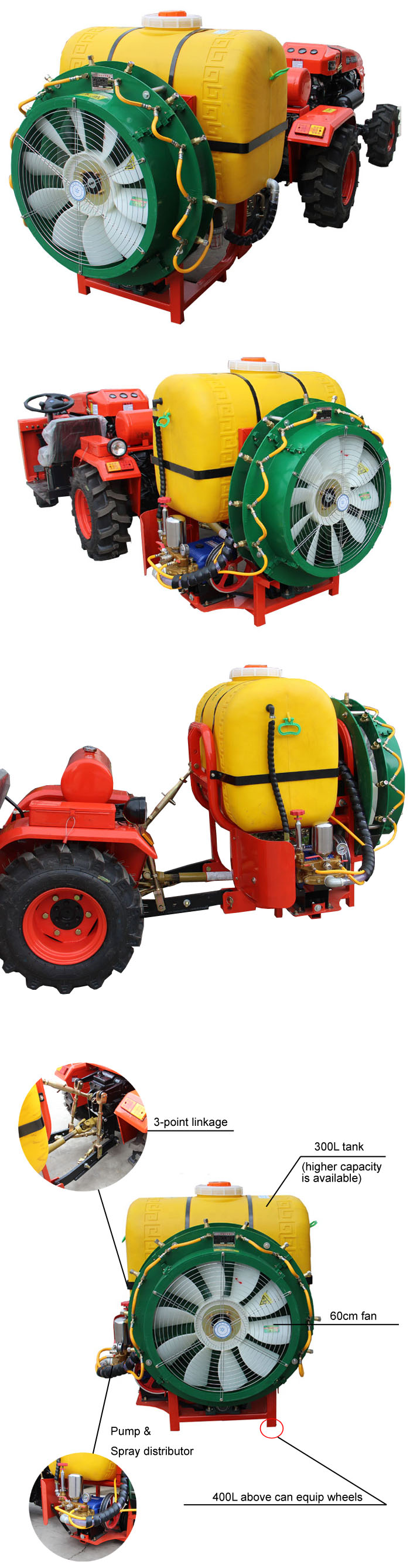

300L wind blowing type sprayer matches the tractor via three-point suspension device. Short machine body is easily operated in garden. Forced wind atomizes liquid for uniform spray whose working efficiency is 20times than labour work. Good atomization effect and low default ratio. This Sprayer mainly be used in chemical weeding, leaf fertilization, spraying plant growth regulator, elimination of diseases and insect pests in agriculture, animal husbandry, forest and urban afforesting & dedusting.
Model No. | 3WP-300 |
Type | Suspension, wind blow |
Capacity (L) | 300 |
Matched power (HP) | ≥28 |
Spray radius (m) | Horizontal - 10m; Vertical - 5m |
Working pressure (Mpa) | 2.5-4 |
Input rpm (r/min) | 720 |
Outline dimension (mm) | 1080X1200X1250 |
Structure weight (kg) | 102 |
Spray head (pcs) | 10 |
Pump form | 4 cylinder plunger pump |
Plunger pump flow (L/min) | 81 |
Plunger diameter (mm) | 30 |
Material of medicine box | High strength plastic |
Diameter of fan impeller (mm) | 600 |
Rpm of fan impeller (r/min) | 2200 |
Material of fan impeller | Nylon blade steel hub |
Working efficiency (Mu/H) | 9-15 |
Connection | 3-point linkage |
Company Information
Located at Dandong City, Liaoning Province, China, Dandong Virtue River Technology Co., Ltd (herein after referred to as "V-river") was established in year 2004. As a professional team, V-river has been devoting its energy to building a mechanical and electrical products platform for supplying a full range of the agricultural machinery and equipment. Meanwhile, providing individual solutions, timely technical supports and after-sale services.

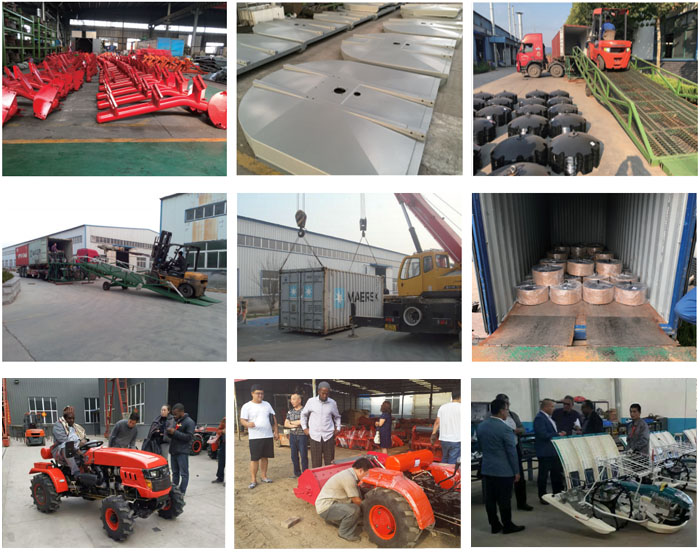

Customer Visit
FAQ
1.Q: Can I get a sample before place order?
A: Some of items you should pay a little sample fee with freight collect.
2.Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.Our factory has gained ISO9001:2008.
3.Q:Why the price is high or low?
A: The website cost for your reference. The final cost by your order quantity and requirement.
4.Q:How about your leading time?
A: It's up to your order quantity, and normal within 25-45 days, now we also accept small quantity.
5.Q:How about the payment terms?
A: We accept T/T and L/C payment.
Our Services
Our service is divided into pre-service, on-purchase service & after-sale service. Pre-service will reply all your query of our machines, such as basic parameter, pictures, video, price...etc. On-purchase service will help you to solve all your operation problem during your operation. After-sale service will help you to order spare parts and other possible query.
We provide spare parts service when you order the machine and online service through phonecall or wechat or whatsapp for quick response.
